Home » MIXER CUM HOIST


CONSTRUCTION MIXER CUM HOIST

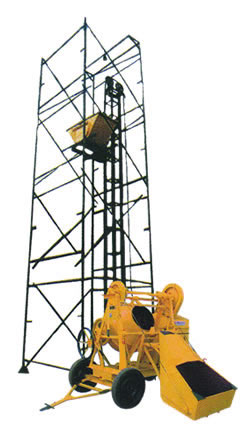

building hoist, construction mixer hoist - Image


Technical Specifications

10/7 cft. (285/200 ltrs.) capacity.
Same Prime - mover (Engine / Motor) for both mixing and lifting.
Saving in initial investment and daily operational cost.
Single operator required for both operations.
Double hinged cradle type hopper system which reduces load on clutch, transmission system and prime - mover.
Automatic shaker provided for quick discharge.
Drum & pinion shafts are from EN8, duly ground.
Std. height 50 feet, can be extended to max. 100 feet
Automatic brake provided for safety.
Provided with scaffolding and lifting bucket. Very easy to assemble and dismantle.


Batch Capacity
Unmixed / Mixed
10/7 CFT
285/200 ltrs.
Capacity / Hr. 7.9 Cu. mt.
Diesel Engine 10 H.P.
Electric Motor 7.5 H.P.
Drum Tilting type
Drum RPM 24
